Column-Level Lineage

This is the feature dbt's own docs don't give you: for each model, dbdocs traces every output column back to the source columns it came from.

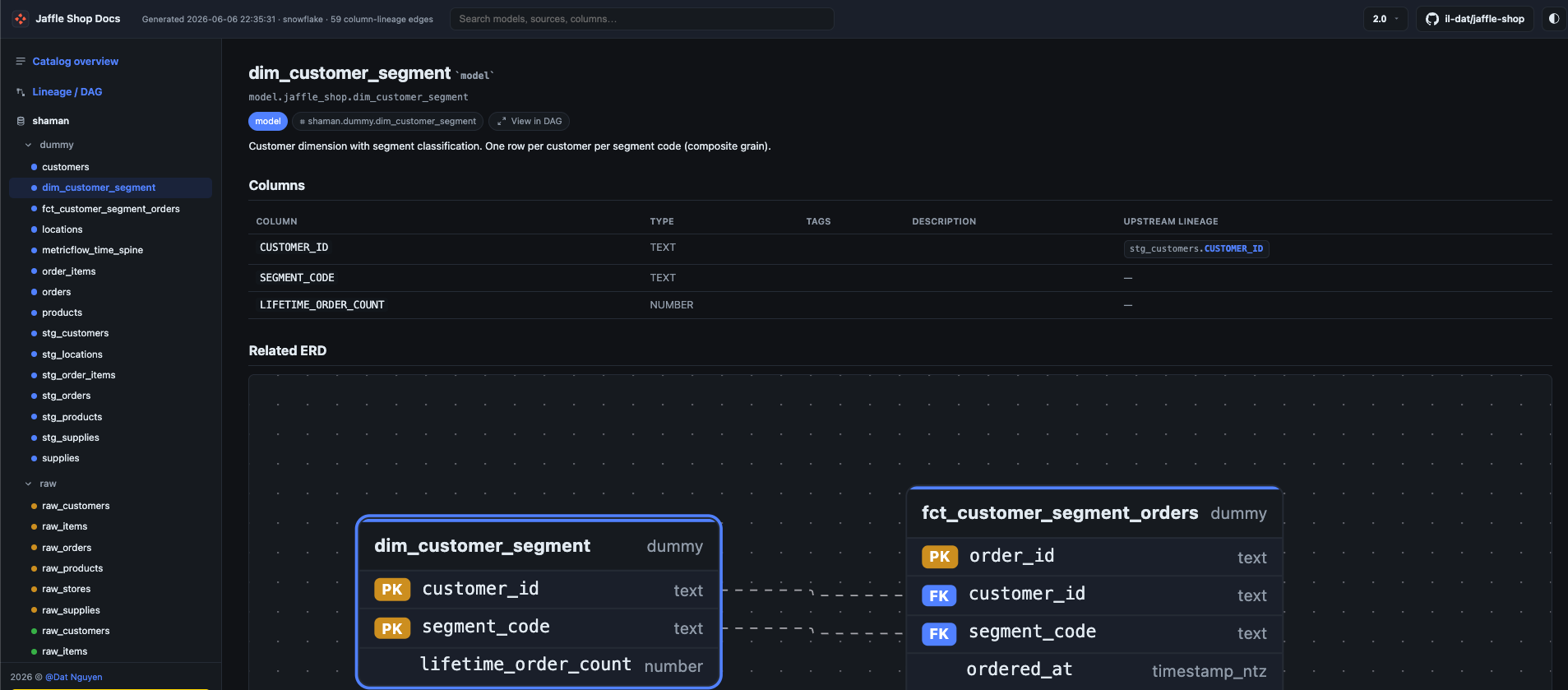

model page

How it's derived

For each model, dbdocs:

  1. Takes the model's compiled SQL (what dbt actually sent to the warehouse).
  2. Parses it with sqlglot.
  3. Qualifies it against a schema built from catalog.json, so SELECT * and unqualified columns resolve to real, fully-named columns.
  4. Traces each output column to its upstream source columns.

The result shows up inline as an "Upstream lineage" column right in the model's column table — no separate view to hunt for.

Fail-soft by design

Column-level lineage is best-effort. Some SQL is genuinely hard to parse, and a single gnarly model should never sink the whole build. So per-model failures are caught, logged, and skipped — generate completes and reports how many models were skipped. You get lineage for everything that parsed, and a clear count of what didn't.

Picking the dialect

Parsing accuracy depends on the SQL dialect. By default dbdocs uses your artifact's adapter_type (snowflake, bigquery, postgres, …). Override it when needed:

dbdocs generate --dialect snowflake

…or set dialect: in dbdocs.yml.
