An alternative dbt docs site — catalog + ERD + column-level lineage + versioned deploys, all in one CLI.

Turn your dbt artifacts into a docs site: a browsable catalog, an entity-relationship diagram, an interactive lineage DAG, and column-level lineage traced from your compiled SQL — all in one dbdocs generate. No database, no build step. Serve it with dbdocs serve, or deploy versioned builds anywhere a static host will take them.

🚀 Try the live demo Quickstart

The demo is a real dbdocs site built from the jaffle_shop dbt project — poke around the catalog, the lineage DAG, the ERD, and column-level lineage.

The dbdocs catalog overview, with project counts and the entity-relationship diagram

The catalog overview — project counts and the entity-relationship diagram, grouped by database and schema.

The interactive lineage DAG in dbdocs

The interactive lineage DAG — pan, zoom, filter, and deep-link to any node.

A dbdocs model page showing the column table with upstream column-level lineage

Per-model detail — every column with its type, description, and upstream column-level lineage traced from compiled SQL.

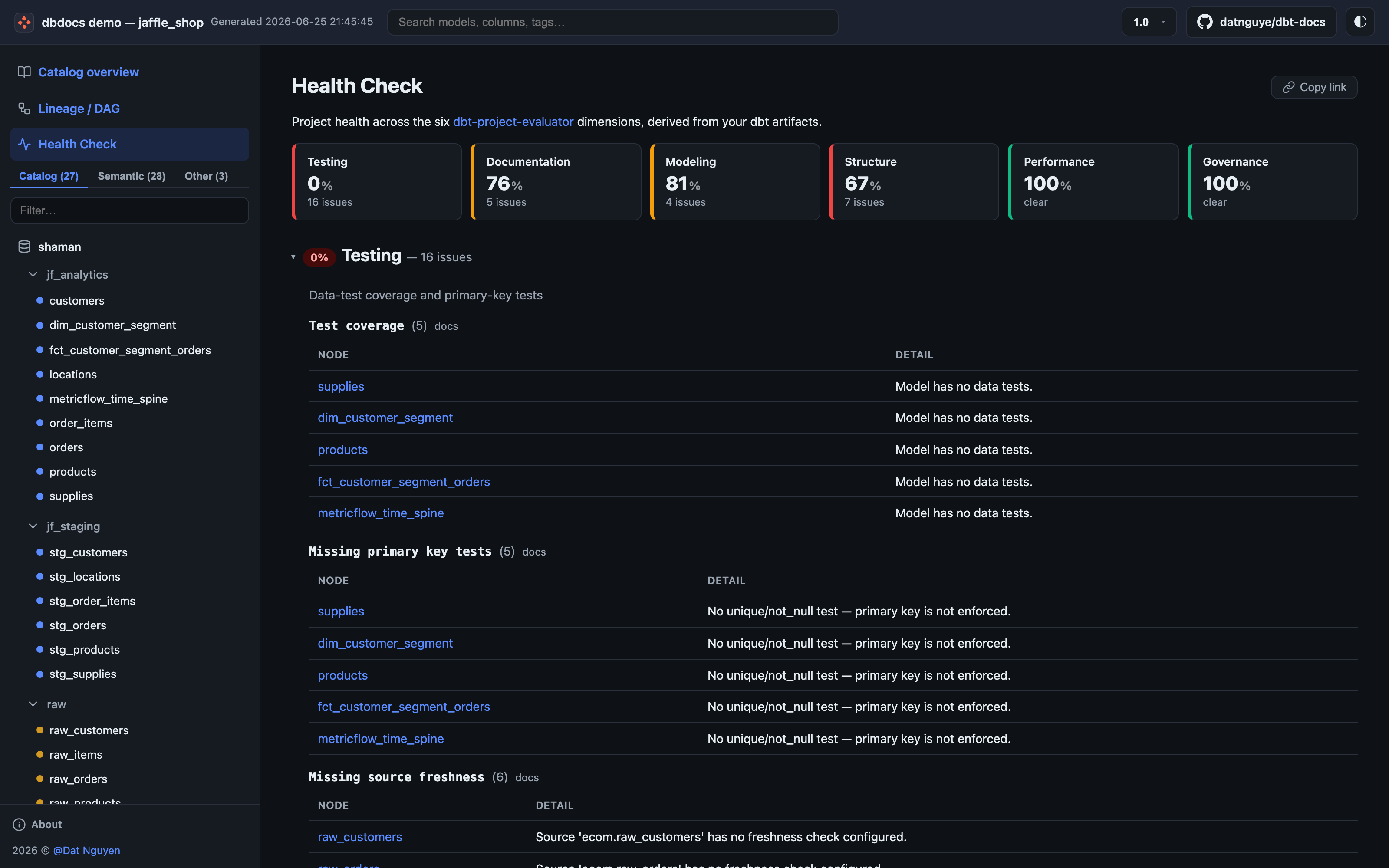

The dbdocs Health Check page scoring six dbt-project-evaluator dimensions

Project Health Check — a scorecard across the six dbt-project-evaluator dimensions, derived straight from your dbt artifacts.

What you get

dbt's built-in docs stop short of telling you which upstream column fed this downstream column, which tables relate to each other, or what changed between builds. dbdocs fills those gaps — no documentation framework or separate ERD tool to install.

  • ERD + column-level lineage — table relationships (dbterd) and column lineage from compiled SQL (sqlglot).
  • Column impact analysis — downstream dependents for any column.
  • Deep-link URLs for every node, column, and DAG view.
  • Any sqlglot dialect, auto-detected from your manifest.
  • Scales to 1 000s of models without freezing the browser.
  • Fail-soft — an unparseable model is skipped, not fatal.
  • Project Health Check across the six dbt-project-evaluator dimensions.
  • Versioned deploys with a built-in version switcher, no plugins.
  • Full-text search across names, columns, descriptions, tags, and SQL at the client-side, no backend.
  • Static REST API (api/v1/) — addressable JSON for every node, lineage, and health, for headless / agent consumption.
  • Dark / light theme.

Installation

Requires Python 3.10+

dbdocs leans on the dbt artifact parser and sqlglot, both of which long ago moved past Python 3.9 — so we did too. Upgrading your interpreter is the way forward (it's worth it).

pip install dbdocs --upgrade Successfully installed dbdocs restart ↻

Verify installation:

dbdocs --version

Quickstart

First, produce dbt artifacts in your dbt project (the bit dbdocs reads):

dbt docs generate           # writes target/manifest.json + target/catalog.json

Then generate, serve, and open the site:

dbdocs generate             # builds ./site/ with index.html + dbdocs-data.json.gz
dbdocs serve                # static http server on http://127.0.0.1:8000

The site must be served over HTTP (not opened as a local file) because it fetches the data payload at load time. dbdocs serve handles that locally; any static host works for deployment.

Head to the Quickstart guide for the full walkthrough.

Contributing

Contributions are welcome — bugs, features, docs, typos. See the Contributing Guide.

If dbdocs saves you some clicks, consider buying me a coffee.

buy me a coffee

**Made with ❤️ by Dat Nguyen**
